Original DCEC Cummins Engine/Generator Set 6LTAA8.9- G2 220KW/1500rpm 8.9L Displacement
Technical parameters of diesel generator sets:
Generator Set: Generator Model KY200GF
Prime Power : 220kw
Rated Voltage: 400/230V
Frequency : 50Hz
Power Factor: 0.8(lagging)
Dimension (L×W×H) (mm): 2600*950*1650 mm
Genset weight (kg): 2100 kg
Diesel Engine: Brand Cummins
Type: 6LTAA8.9-G2
Number of Cylinders: 6
Rotating Speed: 1500RPM
Cycle: Four stroke
Cooling Method: Water Cooling
Bore×Stroke(mm): 114*135
Displacement(L): 8.9L
Compression Ratio: 16.6:1
Speed Governor: Electrical
Cooling System: Water-cooled
Total Lubrication: System Capacity (L) /
Fuel Consumption at 100% Load 59 L/H
Starting Method: 24V Electrical starting
The list of Cummins Genset Engine Models:
| Mode | Rated Power(kw/rpm) | Brand |
| 4B3.9-G1 | 24/1500 | Cummins |
| 4B3.9-G2 | 24/1500 | Cummins |
| 4BT3.9-G1 | 36/1500 | Cummins |
| 4BT3.9-G2 | 36/1500 | Cummins |
| 4BTA3.9-G2 | 50/1500 | Cummins |
| 4BTA3.9-G2 | 58/1500 | Cummins |
| 4BTA3.9-G11 | 67/1500 | Cummins |
| 6BT5.9-G1 | 86/1500 | Cummins |
| 6BT5.9-G2 | 96/1500 | Cummins |
| 6BTA5.9-G2 | 106/1500 | Cummins |
| 6BTAA5.9-G2 | 120/1500 | Cummins |
| 6BTAA5.9-G12 | 132/1800 | Cummins |
| 6CTA8.3-G1 | 163/1500 | Cummins |
| 6CTA8.3-G2 | 170/1800 | Cummins |
| 6CTAA8.3-G2 | 183/1500 | Cummins |
| 6LTAA8.9-G2 | 220/1500 | Cummins |
| 6ZTAA13-G2 | 390/1800 | Cummins |
| 6ZTAA13-G3 | 340/1800 | Cummins |
| QSZ13-G2 | 500/1500 | Cummins |
Customer Benefits:
- High power and maximum efficiency
- Low operating costs as a result of low levels of lubricant and fuel consumption as well as extended service intervals
- Low emissions due to state-of-the-art combustion technologies
- Low space requirement due to compact design
- Reliable in use thanks to field-tested technology
- Long service life resulting from application-specific design
A: Test before shippment
- Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and
10% overload.
- Noise level shall be tested.
- All of the meters on the control panel shall be tested.
- The appearance of the Set and the label, nameplate shall be tested. "
-Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-
240V. Any special voltage is also available as cilent's request.
B: Packing & Warranty
- Packing: Wooden Case, Plywood or Metal Case.
- Delivery Time: Less than 15 working days after receiving prepayment.
- Warranty: One year or 1, 000 hours from the date of shippment
(15 Months or 1, 200 hours for Alternator Part).
C: Payment
T/T, 30% deposit, 70% will be payed before delivery
T/T, 30% deposit , 70% L/C at sight
100% L/C at sight

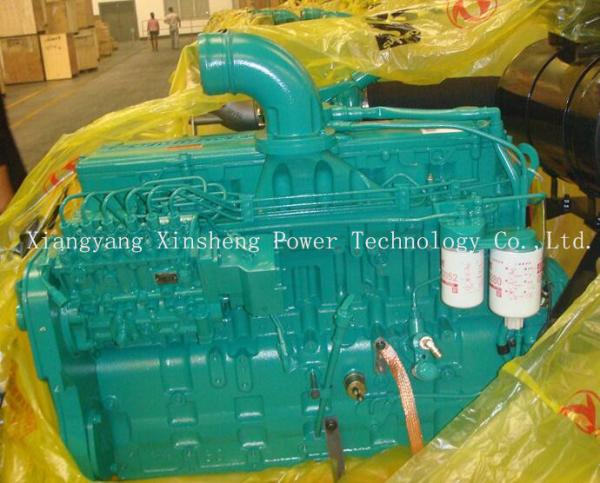

Photo of 6LTAA8.9-G2:
