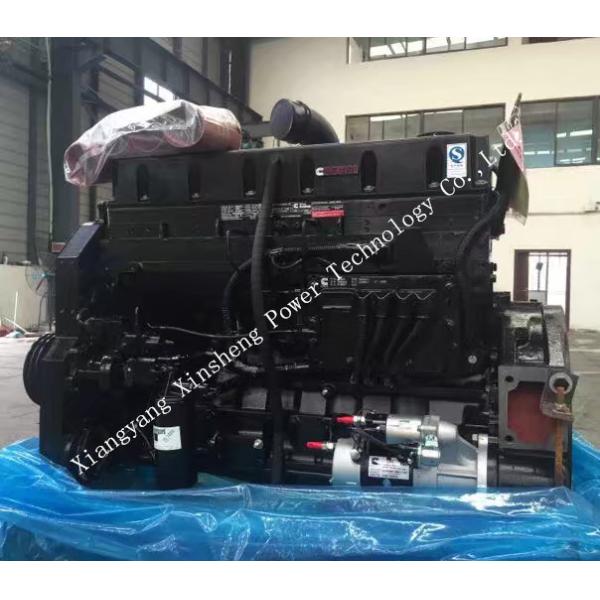

QSM11 Cummins Diesel Engine Assy For Industry Machinery ,Excavator,Loader,Crane
Product Description:
Engine Type: QSM11-C335
Configuration: In-line 6 cylinder, 4 stroke diesel
Bore & Stroke: 125 mm X 147 mm (4.92 in X 5.79 in)
Displacement:10.8 L (661 in3)
Rotation Counterclockwise facing flywheel
Aspiration: Turbocharged/Aftercooled
Dry Weight: 984kg
Emissions:IMO Tier II and EPA Tier 2
Engine Design
Heavy-duty inline six-cylinder configuration. Four cycle
design for quiet and fuel efficient operation. Low profile
for ease of installation and easy service access.
Replaceable wet cylinder liners for longer life and lower
rebuild costs.
Cooling System
Low profile, heat exchanger configuration with standard
closed crankcase ventilation system. (High Output
models only)
Air System
Holset turbocharger optimized for marine applications.
Marine grade air filter. Large capacity sea water aftercooler.
Cladded dry or wet exhaust manifolds available.
Agency approval on commercial ratings by ABS, DNV, BV.
Fuel System
Cummins Celect, a full authority electronic Unit Injection
Fuel System optimizes combustion for increased engine
performance and fuel efficient operation.
Lubrication System
34 L (8.0 g) marine grade, cast aluminum oil pan
designed to resist corrosion. Spin-on Fleetguard oil
filters.
Electrical System
12-volt and 24-volt systems available. Marine grade wiring
harness and instrument panels.
Manufacturing ISO certified plants.
Emissions Certified
Certificates of Compliance are available from the U.S.
EPA and Lloyd's Register of Shipping
Cummins Other Industrial Diesel Engine Model List:
| Cummins Diesel Engine Model List |
| Model | Rated power/Speed | PeakTorque/Speed |
| (kW/rpm) | (N.m/rpm) |
| 4BT3.9-C80 | 60/2200 | 330/1500 |
| 4BT3.9-C100 | 74/2400 | 330/1500 |
| 4BT3.9-C105 | 77/2800 | 330/1500 |
| 4BTA3.9-C80 | 82/2200 | 360/1400 |
| 4BTA3.9-C100 | 74/2200 | 410/1500 |
| 4BTA3.9-C110 | 82/2200 | 460/1500 |
| 4BTA3.9-C125 | 93/2200 | 475/1500 |
| 4BTA3.9-C130 | 97/2500 | 475/1500 |
| 6BT5.9-C130 | 97/2200 | 560/1500 |
| 6BT5.9-C150 | 112/2400 | 580/1500 |
| 6BTA5.9-C150 | 112/2200 | 670/1300 |
| 6BTA5.9-C170 | 125/2300 | 630/1400 |
| 6BTA5.9-C180 | 132/2200 | 750/1300 |
| 6CTA8.3-C195 | 145/1900 | 820/1500 |
| 6CTA8.3-C215 | 160/2200 | 908/1500 |
| 6CTA8.3-C230 | 172/2200 | 1003/1500 |
| 6CTA8.3-C240 | 179/2200 | 1028/1500 |
| 6CTA8.3-C260 | 194/2200 | 1135/1500 |
| 6LTAA8.9-C295 | 220/2100 | 1350/1400 |
| 6LTAA8.9-C300 | 225/2200 | 1268/1000 |
| 6LTAA8.9-C325 | 239/2200 | 1250/1500 |
| 6LTAA8.9-C340 | 250/2200 | 1380/1500 |
| 6LTAA8.9-C360 | 264/2200 | 1480/1500 |
Our products range: Dongfeng Cumins 4B,6B,6C,6L,ISDe,ISL,ISZ,QSB,QSC,QSZ series power from 80hp to 575hp which used for construction machinery, truck, coach, marine, generator set, water pump set. All spare parts of Dongfeng Cumins are available.More details, please contact us via email and call. Thanks !
