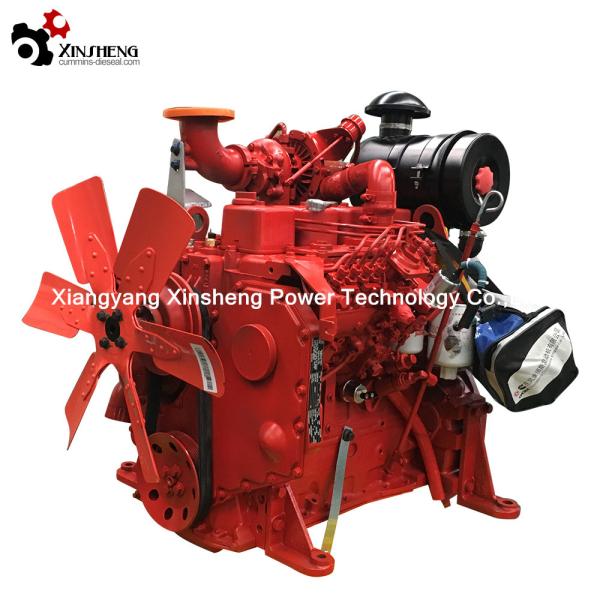

Original Cummins Industrial Diesel Engine 4BT3.9- C100/4BTA3.9- C110/4BTA3.9-C125/4BTA3.9-C130
Specification:
| Euro1 Dongfeng Cummins Truck 4BTA3.9-C130 Engine Parameters |
| Engine model | 4BTA3.9-C130 |
| Engine series | Dongfeng 4BT Series |
| Engine manufacturer | Dongfeng Cummins Engine Co., Ltd |
| Suitable for | Construction machine |
| Air intake ways | Turbo charged, mid-cooling |
| Cylinder number | 4 |
| Fuel type | Diesel |
| Engine cylinders position | 4 cylinders in line |
| Displacement | 3.9L |
| Emission level | Euro 1 |
| Max output power | 97kw |
| Rated power speed | 2500RPM |
| Max horse power | 130HP |
| Max torque | 475N.m |
| Max torque speed | 1500r/min |
Features:
1) Engine:
a) Under the license of Cummins Engine Company of the United States
b) Wuxi Weifu fuel system and the technology of turbocharger and aftercooler,higher power output
c) Lower fuel and lubrication oil consumption
2) Alternator:
a) Optional permanent magnet generator (PMG) system provides constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
Cummins Industrial Diesel Engine Model List:
| Cummins Diesel Engine Model List |
| Model | Rated power/Speed | PeakTorque/Speed |
| (kW/rpm) | (N.m/rpm) |
| 4BT3.9-C80 | 60/2200 | 330/1500 |
| 4BT3.9-C100 | 74/2400 | 330/1500 |
| 4BT3.9-C105 | 77/2800 | 330/1500 |
| 4BTA3.9-C80 | 82/2200 | 360/1400 |
| 4BTA3.9-C100 | 74/2200 | 410/1500 |
| 4BTA3.9-C110 | 82/2200 | 460/1500 |
| 4BTA3.9-C125 | 93/2200 | 475/1500 |
| 4BTA3.9-C130 | 97/2500 | 475/1500 |
| 6BT5.9-C130 | 97/2200 | 560/1500 |
| 6BT5.9-C150 | 112/2400 | 580/1500 |
| 6BTA5.9-C150 | 112/2200 | 670/1300 |
| 6BTA5.9-C170 | 125/2300 | 630/1400 |
| 6BTA5.9-C180 | 132/2200 | 750/1300 |
| 6CTA8.3-C195 | 145/1900 | 820/1500 |
| 6CTA8.3-C215 | 160/2200 | 908/1500 |
| 6CTA8.3-C230 | 172/2200 | 1003/1500 |
| 6CTA8.3-C240 | 179/2200 | 1028/1500 |
| 6CTA8.3-C260 | 194/2200 | 1135/1500 |
| 6LTAA8.9-C295 | 220/2100 | 1350/1400 |
| 6LTAA8.9-C300 | 225/2200 | 1268/1000 |
| 6LTAA8.9-C325 | 239/2200 | 1250/1500 |
| 6LTAA8.9-C340 | 250/2200 | 1380/1500 |
| 6LTAA8.9-C360 | 264/2200 | 1480/1500 |
Our Services:
1) we focus in diesel engine and engine parts for over 9 years
2) strong in resources integration
3) with freedom deep service
4) cheapest shipping
Packaging & Delivery
Packaging Detail:
Packaged By Exporting plywood case,woooden.
Delivery Detail:
Shipped in 10 working days after yr advance payment
With warranty for 12 month or 1000 hours, depend on what comes first.
cummins diesel engine easy to repair, have service site all over the world, parts supply from
every local engine service site.
We can provide ORIGINAL CUMMINS engines used for Industry, Bus, Marine, Generator Set and water pump. More details, please contact us via email and call. Thanks !
