4 Stroks KTA19-C600 448KW / 2100 RPM Diesel Engine Construction Machinery CCEC Cummins
Technical parameters
| Engine Model | KTA19-C600 |
| Engine Type | 6 Cylinders in Line |
| Displacement | 19 L |
| Bore*Stroke(mm) | 159*159 |
| Compression Ratio | 13.9 : 1 |
| Net Weight (with flywleel & alternator) | 2073Kg |
| Overall Diemension(L*W*H) | 2151mm*966mm*1704mm |
| | |
| Technical Specification of KTA19-C600 Industrial Diesel Engine |
| Certification | Euro Ⅱ |
| Aspiration | Turbocharged-Intercooled |
| Fuel System | Direct Injection Pump |
| Electrical System(Starter Motor/Alternator) | 12V/24V |
| Lowest Starting Temp without auxiliary system | -12℃ |
| Cooling Method | Water Cooled |
| | |
| Performance Data KTA19-C600 Industrial Diesel Engine |
| Rated Power | 448 kW/600 HP |
| Rated Speed | 2100 rpm |
| Max.Torque/Speed | 2237 N.m @ 1500 rpm |
| Fuel Consumption | 210 g/Kw.h |
| Max. Continuous Running Altitude | 2000 m |
Engine Model List form as below:
| Engine Model | SO. NO. | Power kW/r/min | TorqueN.m/r/min |
| KT38-P1000 | SO66188 | 746/1800(Max Power) |
| KTA38-P1200 | SO66189 | 895/1800(Max Power) |
| KTA38-P1400 | SO66190 | 1045/1800(Max Power) |
| NT855-C280 | SO13294 | 184/1900 | 1061/1300 |
| NTA855-C310 | SO13310 | 231/2100 | 1261/1400 |
| NTA855-C360 | SO13284 | 269/2100 | 1464/1400 |
| NTA855-C360 | SO13516 | 269/2100 | 1464/1400 |
| NTA855-C360 | SO13730 | 269/1800 | 1464/1300 |
| NTA855-C400 | SO13244 | 298/2100 | 1559/1500 |
| KT19-C450 | SO40069 | 335/2100 | 1830/1500 |
| KT19-C450 | SO40138 | 335/2100 | 1830/1500 |
| KT19-C450 | SO40223 | 335/2100 | 1830/1500 |
| KT19-C450 | SO40342 | 335/2100 | 1830/1500 |
| KTA19-C525 | SO40141 | 392/2100 | 2136/1500 |
| KTA19-C525 | SO40278 | 392/2100 | 2136/1500 |
| KTA19-C525 | SO40284 | 392/2100 | 2136/1500 |
| KTA19-C525 | SO40330 | 392/2100 | 2136/1500 |
| KTA19-C525S10 | SO40389 | 392/2100 | 2136/1500 |
| KTA19-C600 | SO40216 | 448/2100 | 2237/1500 |
| QSK19-C760 | SO41020 | 567/2100 | 3085/1500 |
| KTA38-C1050 | SO60202 | 783/2100 | 4068/1500 |
| KTA38-C1200 | SO60193 | 854/1900 | 4475/1500 |
| KTA38-C1200 | SO60146 | 895/2100 | 4475/1500 |
| KTA38-C1400 | SO60279 | 1045/1800 | 4550/1500 |
| KTA50C1600 | SO60225 | 1194/2100 | 5966/1500 |
| KTTA50C2000 | SO60255 | 1492/1900 | 7864/1500 |
Our Services
1) we focus in diesel engine and engine parts for over 9 years
2) strong in resources integration
3) with freedom deep service
4) cheapest shipping

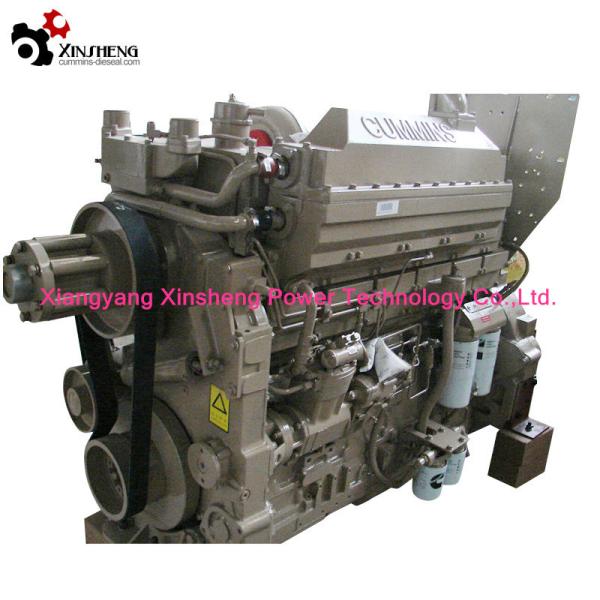

Photo of KTA19-C600:
Payment:
T/T, 30% deposit, 70% will be payed before delivery
T/T, 30% deposit , 70% L/C at sight
100% L/C at sight
Packaging & Delivery
Packaging Detail:
Packaged By Exporting plywood case,woooden.
Delivery Detail:
Shipped in 3-10 working days after yr advance payment
For more information about KTA19-C600 diesel engine sales, please feel free to contact us!!!
